Hand stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and low running costs.

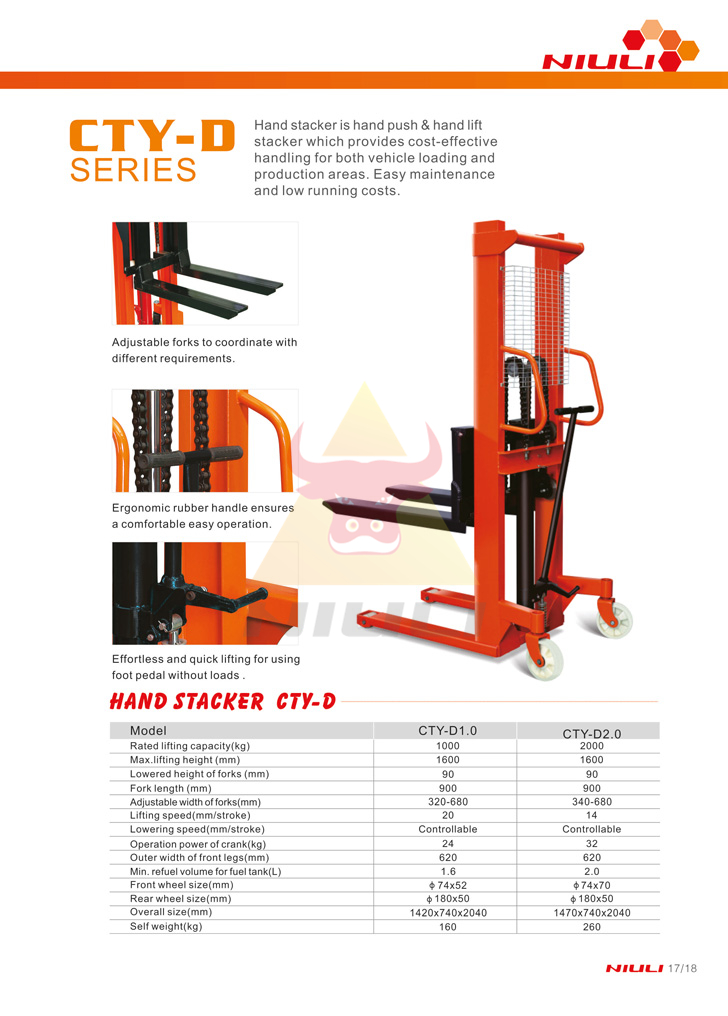

CTY-D Hand Stacker
Product Name:CTY-D Hand Stacker
Product Detail
| Model | CTY-D1.0 | CTY-D2.0 |
| Rated lifting capacity(kg) | 1000 | 2000 |
| Max.Lifting height(mm) | 1600 | 1600 |
| Lowered height of forks(mm) | 90 | 90 |
| Fork length(mm) | 900 | 900 |
| Adjustable width of forks(mm) | 320-680 | 340-680 |
| lifting speed(mm/s) | 20 | 14 |
| Lowering speed(mm/s) | Controllable | Controllable |
| Outer width of fuel tank(mm) | 620 | 620 |
| Operation power of crank(kg) | 24 | 32 |
|
Min.refuel volume for fuel tank(L) |
1.6 | 2.0 |
| Front wheel size(mm) | φ74×52 | φ74×70 |
| Rear wheel size(mm) | φ180×50 | φ180×50 |
| Overall size(mm) | 1420×740×2040 | 1470×740×2040 |
| Truck weight(mm) | 160 | 260 |
